RGBLink Mini ISO Video Mixer, 10-Channel, IN: 4x HDMI, OUT: 2x HDMI / 2x USB-A / RJ45
- Availablity : In stock
- Sku : rgblinkminiiso
- Brand: RGBLINK
Key features
RGBLink Mini ISO Video Mixer
The mini-ISO has four 4K HDMI inputs and four SDI inputs that support signals from a PC, laptop, camera and more. Both line and mic level audio are supported. Two HDMI outputs for monitoring multiview previews, programs or test patterns. A USB output supports the YUY2 and MJPEG encoding formats, which can be recognized as a webcam for streaming on Facebook, YouTube, ZOOM, etc.

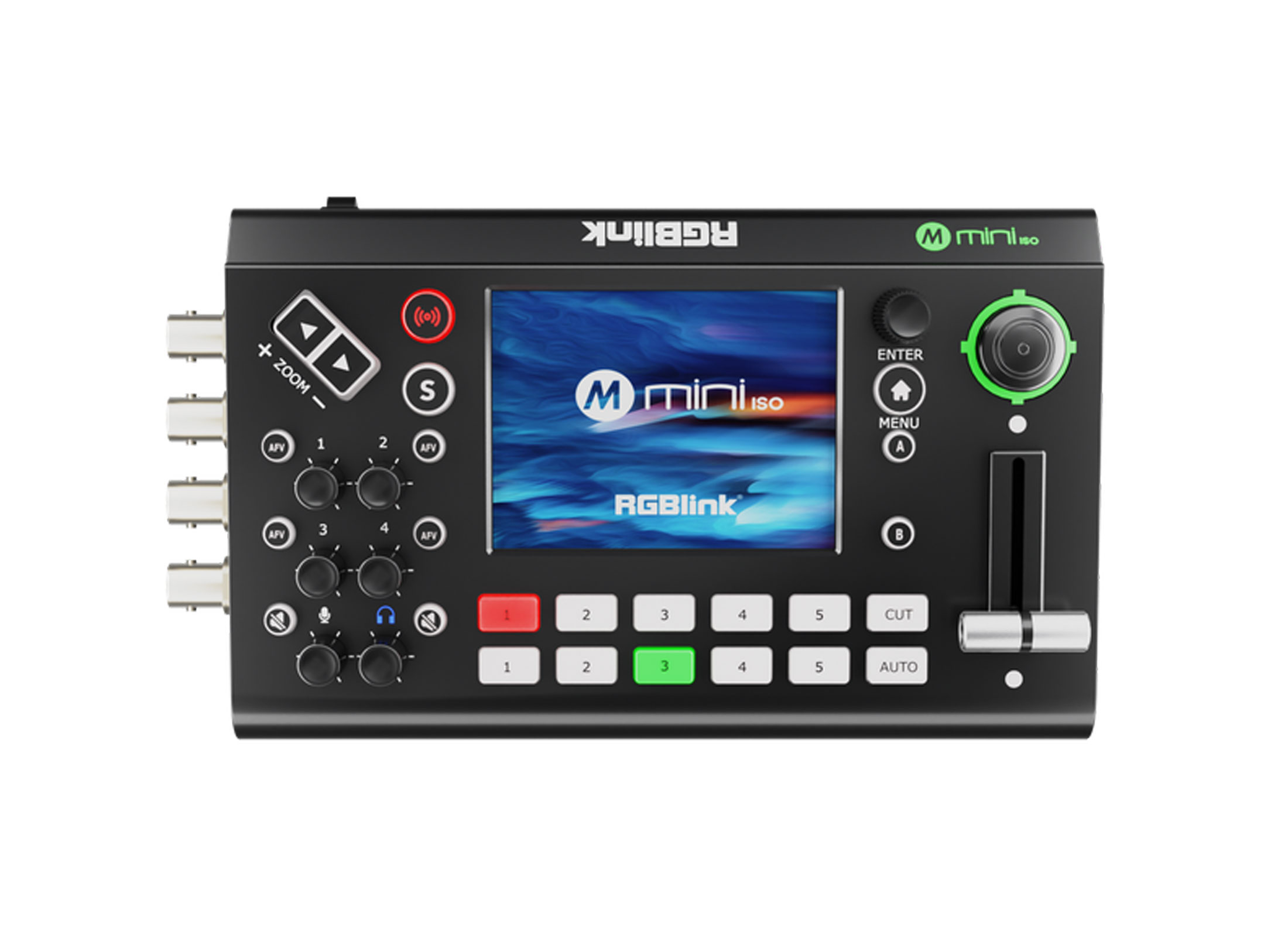

The mini-ISO is equipped with a 3.5-inch TFT touch screen for menu operation and display of video sources. Mini-ISO is packed with features such as dynamic output control, multiview preview, picture-in-picture, chroma key, luma key, transitions, integrated PTZ camera control, and much more.
The mini-ISO is compatible with Windows and macOS desktop operating systems and supports control via iOS and Android mobile devices. It supports TAO Cloud integrated control and simultaneous streaming to 4 live streaming platforms via RTMP(S).
Features
- USB 2.0 One-Key Recording in exFAT or FAT32 format with a bit rate of up to 16Mbps
- 3.5-inch TFT touch screen for menu operation, signal preview and work status display - USB output supports YUY2 or MJPEG format, which can be recognized as a webcam for streaming
- Four HDMI 2.0 inputs (HDCP 1.4 compliant), resolution up to 4K@60 - Supports RTMP(S) network streaming for up to 4 platforms
- Four SDI inputs support signals from PC, camera, etc. - Save and load PTZ presets. One-click recall for presets
- Two HDMI 1.3 outputs for monitoring multiview previews, programs or test patterns - 5-way joystick and toggle for controlling PTZ cameras (IP VISCA protocol supported)
- Mix for embedded 4-channel HDMI/SDI and external 2-channel audio - Set either “green” or “blue” as the key color for chroma key
- AUTO and WIPE switch mode available - Supports Luma Key
- 15 transition effects - Supports TAO cloud control, compatible with mobile devices and desktop
Technical Data
Connectors
Input
- 4K 4×HDMI-A
- UVC (Webcam) 1×USB-A

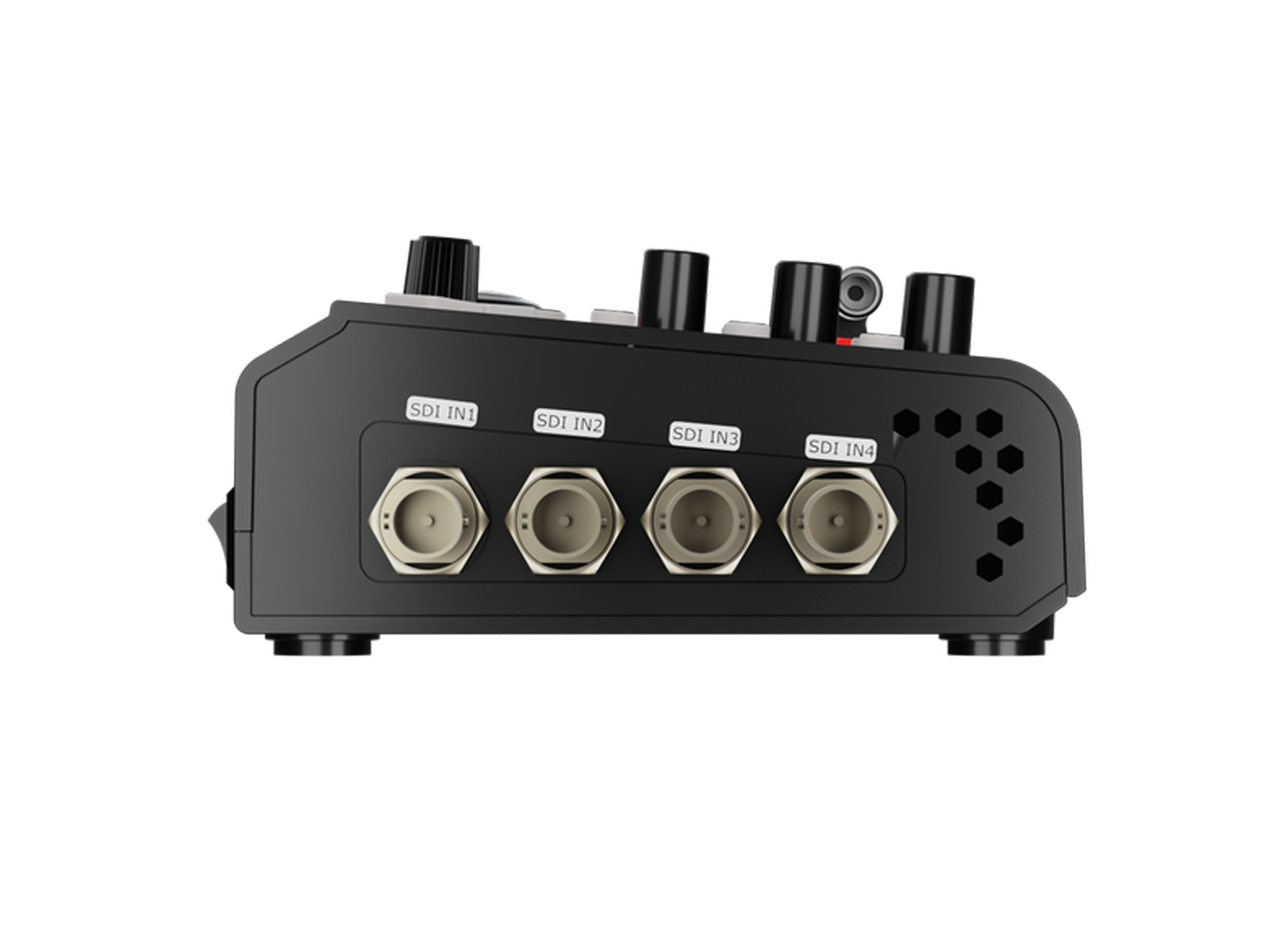

- SDI 4×BNC
- Media: 1×USB-A

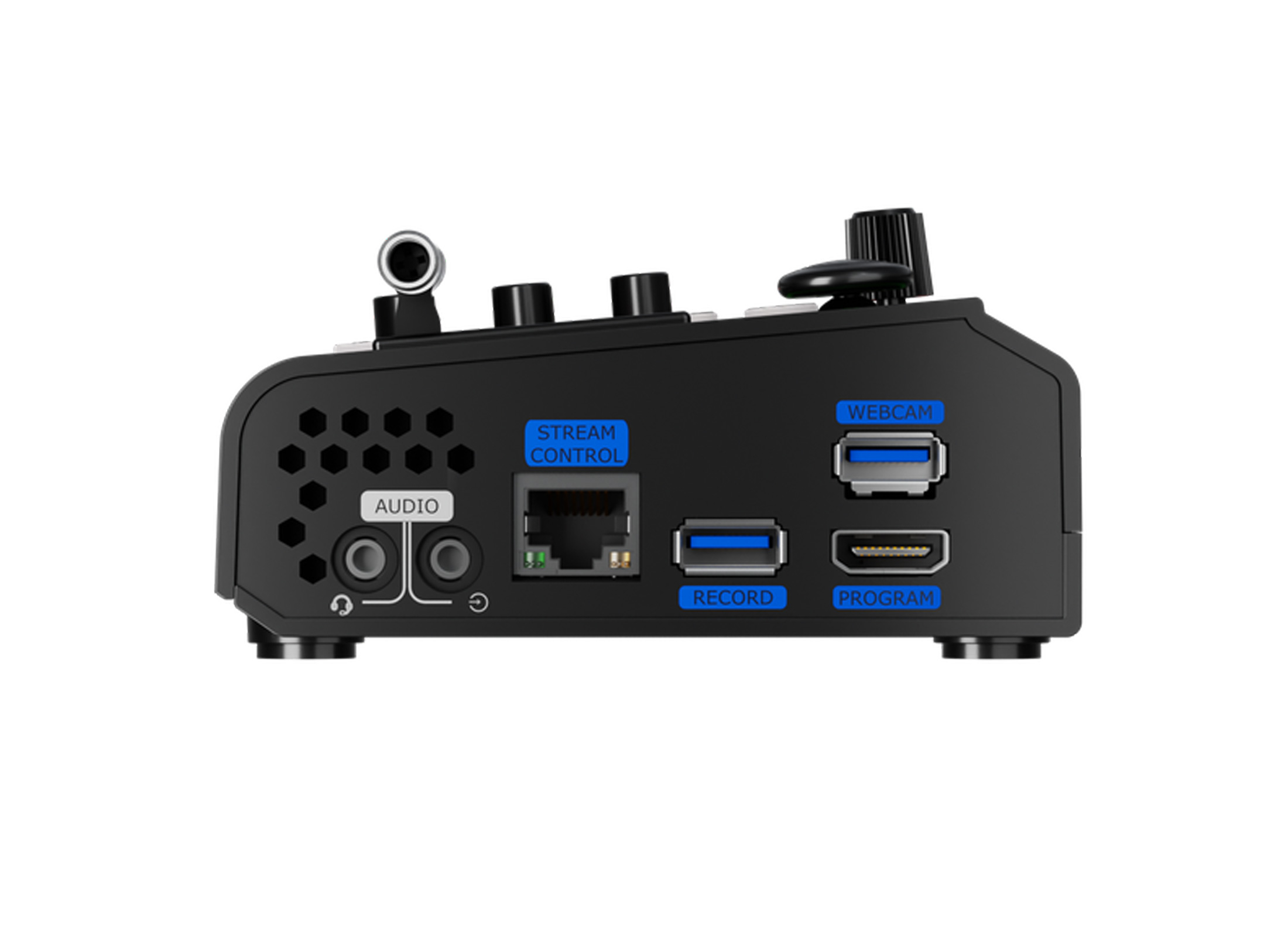

Output
- 2K 2×HDMI-A
- USB (Record) 1×USB-A
- USB (Stream) 1×USB-A
- RTMP(S)/NDI 1×RJ45
- Audio: Embedded Audio Input 4×HDMI-A
- External Digital Input: 1×USB-A
- External Analog Input: 2×3.5mm Mini-Jack
- External Analog Ouput: 1×3.5mm Mini-Jack
- Communication/Stream/Upgrade: LAN 1×RJ45
- Power: Power Supply 1×USB-C
- Performance Input Resolutions: HDMI 2.0
- SMPTE 720p@50/60 | 1080i@50/60 | 1080p@24/30/50/60
- VESA 1024×768p@60 | 1280×720p@60 | 1280×768p@60 | 1280×8 00p@60 | 1280×1024p@60 | 1360×768p@60 | 1366×768p@60 |
- 1440×900p@60 | 1600×1200p60 | 1680×1050p@60 | 1920×108 0p@60 | 1920×1200p@60 | 3840×2160p@60 | 4096×2160p@60
- SDI 720p@50/60 | 1080i@50/59.94/60 | [email protected]/24/25/29.97/30/50/59.94/60
- Output Resolutions: HDMI 1.3 1280×720p@50/60 ~ 1920×[email protected]/24/25/29.97/30/50/59.94/60
- USB: 1280×720p@60 | 1920×1080p@24/25/30/50/60
- Video Color Space: RGB 8bit | YCbCr 4:4:4 8bit | YCbCr 4:2:2 8bit.
- Video Latency: <3 Frames
- Audio: Audio Format PCM/2ch/24bit/48kHZ
- Sampling Rate: 48K
- Bitrate: 24bit
- Recording/Storage Record Format: MP4 (up to 16Mbps).
- Hard disk formats: FAT32 | exFAT
- Supported standards: HDMI 2.0
- HDCP: 2.2
- USB: 3.0
- SDI: 3G/HD/SD
- NDI: NDI | HX2
- Power supply compatibility: USB Power Delivery (PD) 3.0
- Input voltage: 12V/2.5A
- Maximum power: 30W
- Ambient temperature: 0℃~60℃.
- Humidity: 10%~85%
- Dimensions (WxDxH): 197x113x60mm
- Weight: 0.6kg
