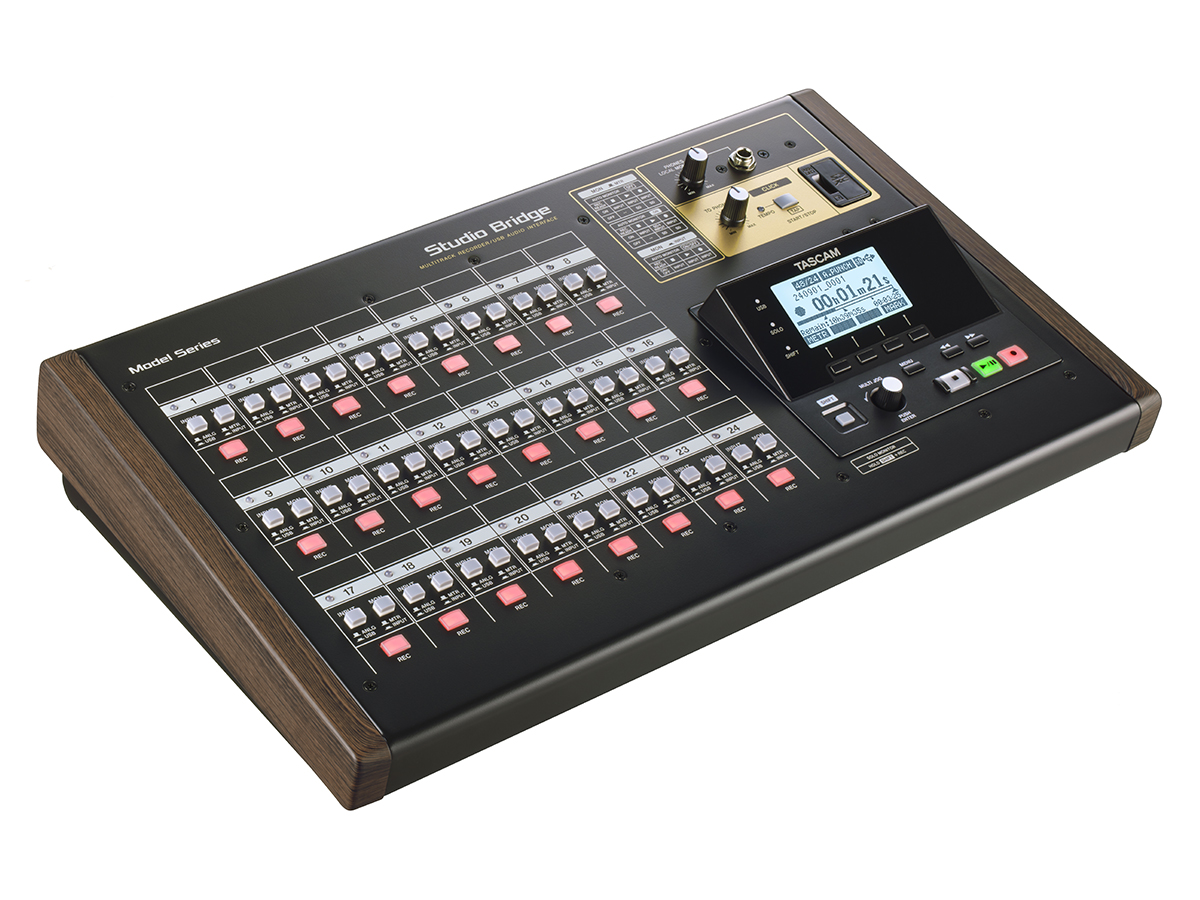

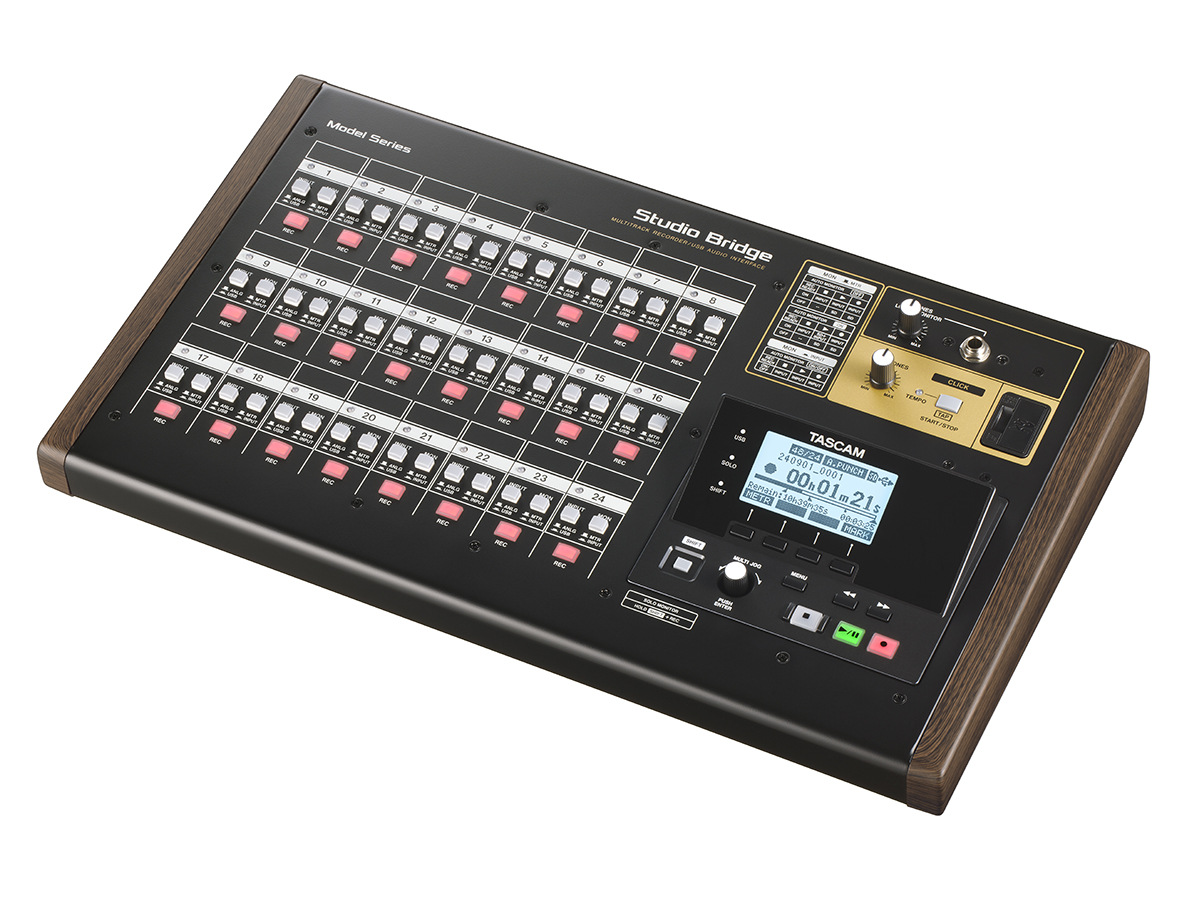

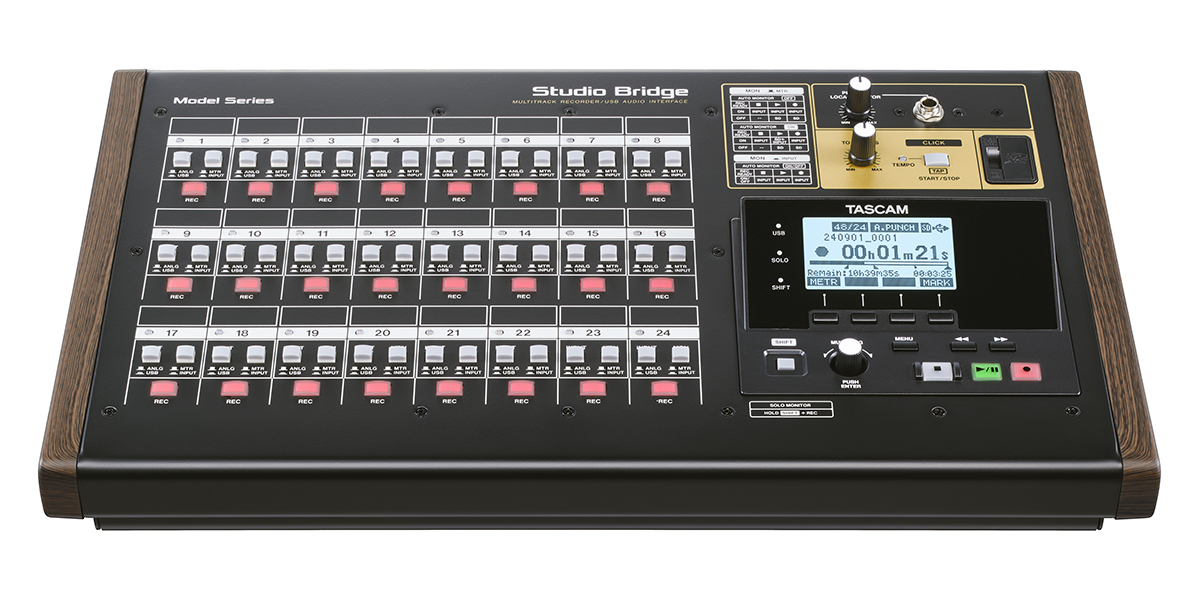

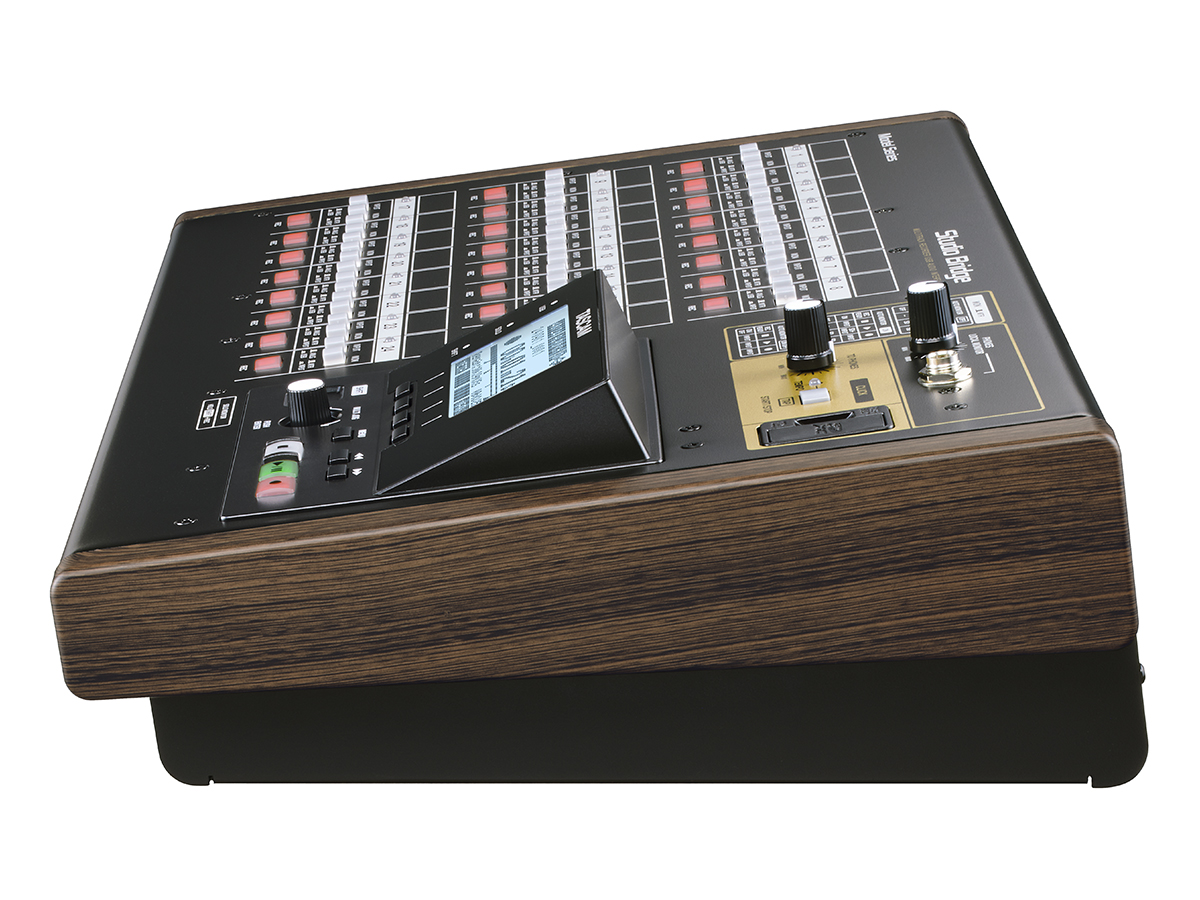

Tascam Studio Bridge 24-Track Recorder and USB Audio Interface with MIDI
- Availablity : In stock
- Sku : tascstudiobridge
- Brand: Tascam
Key features
- 24-track multitrack recorder using SDXC SD card (punch-in/out supported)
- 24-IN/24-OUT USB audio interface

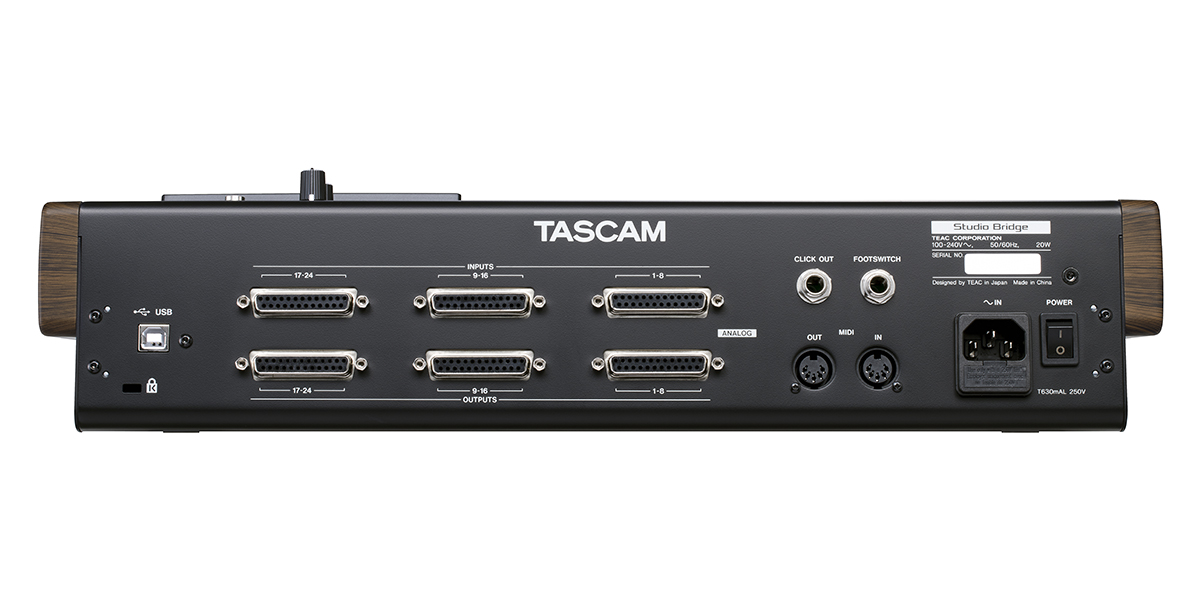

- 24 DB25 analog line level input and output
- DAW transport control and REC READY control via HUI/MCU
- Dedicated Settings Panel application with Meter Bridge
- MIDI in/out allows USB MIDI interface and MIDI sync, 1/4" audio click output with tempo control

24-Channel Modular Multitrack Recorder DAWLess solution.
Your analog mixer can connect to the Studio Bridge as a modular recorder with 24 channels. Easily record and mix 24 tracks with the Studio Bridge - no computer required. You can even sum your mixes to the onboard recorder and export stereo mix .wav files for release-ready productions.
24-IN/24-OUT Audio/MIDI Interface for DAWs
TASCAM knows you want true analog flavor on your DAW recordings, and we’re here to help. Your analog mixer can easily connect to your DAW using the Studio Bridge as a 24-IN/24-OUT audio interface. You can record directly into any DAW and even create a summed mix using your console and outboard gear with audio returns.


DAW Transport Controller and Dedicated Meter Bridge Software
Studio Bridge also works as a DAW transport controller. Rec/Play/Stop and Rec Ready buttons link directly to your DAW for ease of use. The control software includes a digital meter bridge which is available for PC /Mac to monitor audio levels on each channel, including the stereo master bus.
* DAW control operation has been confirmed with the following DAW software:
・Avid Pro Tools
・Apple Logic Pro
・MOTU Digital Performer
・Steinberg Cubase
・Ableton Live
・Cakewalk by BandLab
・PreSonus Studio One
・Cockos REAPER
・Steinberg Cubasis 3.3
MIDI Synchronization for Your Sequencers
With MIDI In/Out ports, your favorite drum machines, sequencers, synths, and controllers can easily be integrated into any production.
Unlock your creativity with your go-to analog hardware and the Studio Bridge.


Live Recording Applications
In live environments the Studio Bridge becomes your mobile recording studio when connected to your mixing console. Just one piece of gear - no complex system, no computer required.
